Customising Shopfront

How to Setup Receipt Templates

Shopfront features customisable receipt templates to provide your own look and feel to your receipts. To modify or create a receipt template complete the following:

  1. Select the Menu icon
  2. Select Setup
  3. Select Receipts
  4. Select +New to create a new template or click Edit on the template you wish to modify

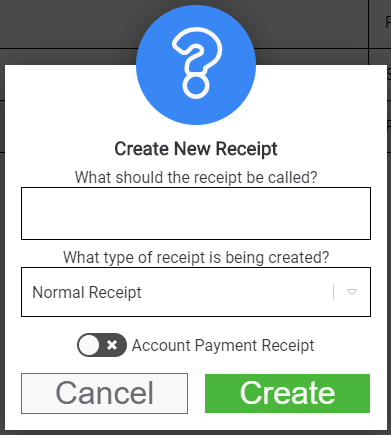

If you are creating a new template please type a name using the text field.






You have the choice of different types of receipts to create:

  • Normal Receipt - print/view sales receipts from the sell screen
  • Generic/Text only Receipts - print/view sales receipts from the sell screen. Only for older receipt printers
  • A4 Receipts - print/view customer receipts in A4 format
  • Email Receipts - email/view customer receipts and invoices
  • Account Payment Receipts - toggle on for any of the above formats as account payment receipts

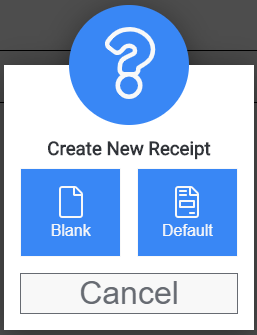

You can choose to create your receipt from our preset default template or from a blank page.






To modify/add components please:

  1. Select the component field you wish to modify or add
  2. To add please select and drag components to the desired location on the template
  3. Modification options specific to components are available under the Settings tab



List of Components and Settings:

Please note, available components and settings may vary depending on the receipt type selected.


Heading

  • Set a text for a Completed Sale by typing into the text box
  • Set a text for a Parked Sale by typing into the text box
  • Modify colours, font, alignment
  • Modify the padding
  • Add and modify a border
mceclip1.png Text
  • Add and modify text with all common text processing tools
  • Modify the Background Colour
  • Modify the padding
  • Add and modify a border
mceclip2.png Image
  • Add or change the logo via the Media Centre
  • Set Image dimensions if other than the default
  • Modify the Background Colour
  • Add and modify a border
mceclip3.png Barcode
  • No modifications available
mceclip4.png Spacer
  • Set the Height of the space to add between components
mceclip5.png Columns
  • Set the width percentage of the columns
  • Add and modify a border
mceclip6.png Products
  • Change the names of values to be displayed
  • Enable values to be displayed
  • Rearrange order of values to be displayed
  • Enable a line to display discount reasons
  • Enable a line to display a product note
  • Modify colours, font, alignment
  • Modify the padding
  • Add and modify a border
mceclip7.png Tax
  • Enable values to be displayed
  • Rearrange order of values to be displayed
  • Modify colours, font, alignment
  • Add and modify a border
mceclip8.png Tax Indicator
  • Set a symbol for the Indicator by typing into the text box
  • Set a text to be displayed as explanation with the indicator by typing into the text box
  • Set the Tax type by selecting from the dropdown list
  • Modify colours, font, alignment
  • Add and modify a border
mceclip9.png Payments
  • Enable values to be displayed
  • Rearrange order of values to be displayed
  • Modify colours, font, alignment
  • Add and modify a border
mceclip10.png Loyalty
  • Change the names of values to be displayed
  • Enable values to be displayed
  • Rearrange order of values to be displayed
  • Modify colours, font, alignment
  • Add and modify a border
mceclip11.png Account
  • Change the names of values to be displayed
  • Enable values to be displayed
  • Rearrange order of values to be displayed
  • Modify colours, font, alignment
  • Add and modify a border
mceclip12.png Total
  • Change the names of values to be displayed
  • Enable values to be displayed
  • Rearrange order of values to be displayed
  • Modify colours, font, alignment
  • Add and modify a border
mceclip13.png External Receipt
  • Add and modify a border
  • Change the alignment of the receipt
Gift Cards
  • Change the names of values to be displayed
  • Enable values to be displayed
  • Rearrange order of values to be displayed
  • Modify colours, font, alignment
  • Add and modify a border

Note: The Gift Cards component will not appear on receipts when reprinted



Configure an Email Receipt Template to Add a PDF Attachment

To attach an A4 PDF to an email receipt template, follow the steps below.

  1. From your Receipt List, select Configure next to the Email receipt template you wish to add an attachment to
  2. Select Add Attachment
  3. Provide a name for the PDF attachment. If you want to include the outlet name and invoice number in the name, you can use the dynamic field: {outlet.name} Invoice #{invoiceNo}
    Note; You can find additional placeholders for the PDF filename attachment by referring to Adding Dynamic Fields to Receipts
  4. Under Receipt select an already existing A4 Receipt template to use as the attachment
  5. Select Confirm

Note; It is possible to add multiple receipt attachments to a template, but make sure not to include the same A4 receipt more than once.

For instructions on emailing receipts, refer to the help guide on Emailing Receipts to Customers.



Customising Receipt Padding

There are two options to adjust receipt padding in Shopfront, adjusting directly on the receipt or adjusting through the browser settings.

Adjusting the padding in Shopfront allows you to add padding in any direction of the receipt, offsetting the location of the receipt on the paper. To configure the padding, follow the steps below.

  1. From your Receipt List, select Configure next to the receipt template you wish to modify the padding on
  2. Enter the values you desire into each of the Top, Left, Right and Bottom fields
    • Values are in pixels
  3. Select Confirm

To adjust the browser settings, follow our guide on setting up a receipt printer in Chrome and instead of selecting Default for the Margin you can use whichever value is most appropriate. Other browsers will having similar but slightly different steps.
