Hardware Dimensions

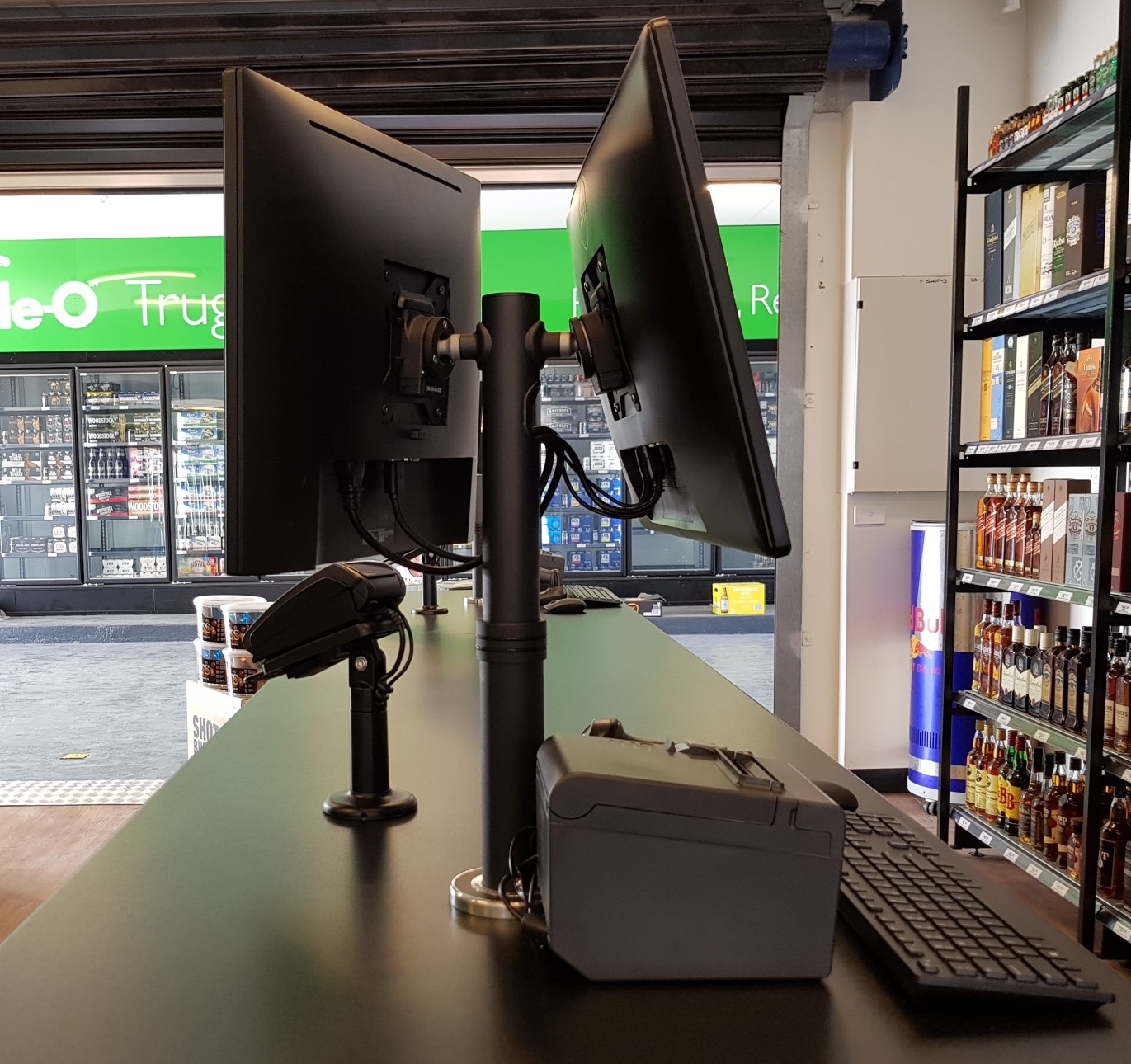

Typical POS hardware setup looks as follows;

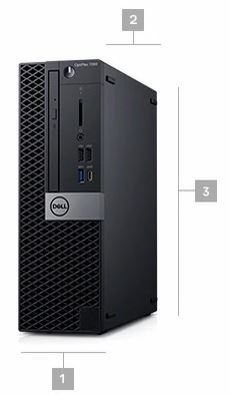

Dell Small Form Factor PC
1. Width: 9.26cm | 2. Depth: 29.2cm | 3. Height: 29.0cm

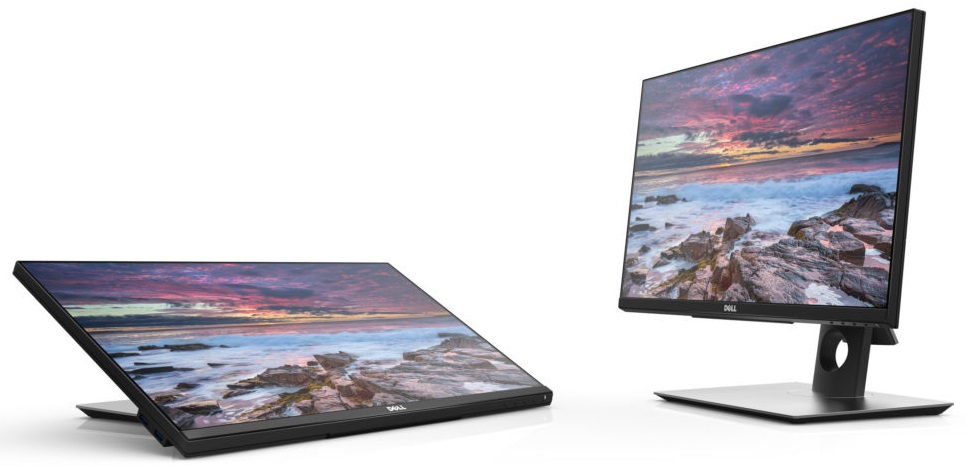

Dell Touch Screen
Without stand - Height: 32.14 cm | Width: 53.78 cm | Depth: 5.41 cmDell_Touch_Screen.jpg







Dell All in One Touch PC
Without stand - Height 34.40 cm | 2. Width 54.02 cm | 3. Depth 5.28 cm
OptiPlex 7460 All-in-One - DIMENSIONS & WEIGHT

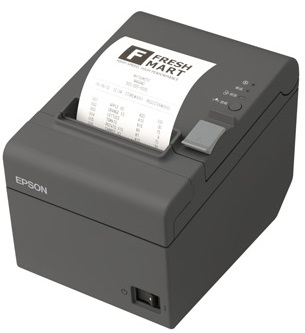

Epson Receipt Printer
Height 14.6 cm | Width 14 cm | Depth 19.9 cm

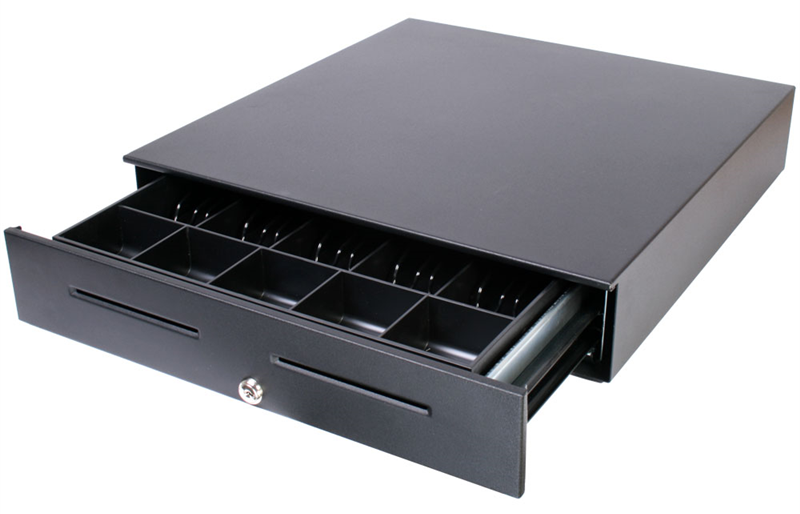

Cash Drawer
Height 11 cm | Width 41 cm | Depth 41 cm





Wireless Barcode Scanner
Height 7 cm | Width 9.8 cm | Depth 18.6 cm





Brother All In One Laser Printer - with lid closed
Height 31.8 cm | Width 41 cm | Depth 39.9 cm





Dual Pole Mount Display
Height Adjustable 36.75 cm to 48.75 cm | Width (Back to Back Mount) 15.92 cm
Pole fully extended: Top of screen height 60cm | Clearance below screen 29cm
Pole lowered: Top of screen height 49.5cm | Clearance below screen 18.5cm

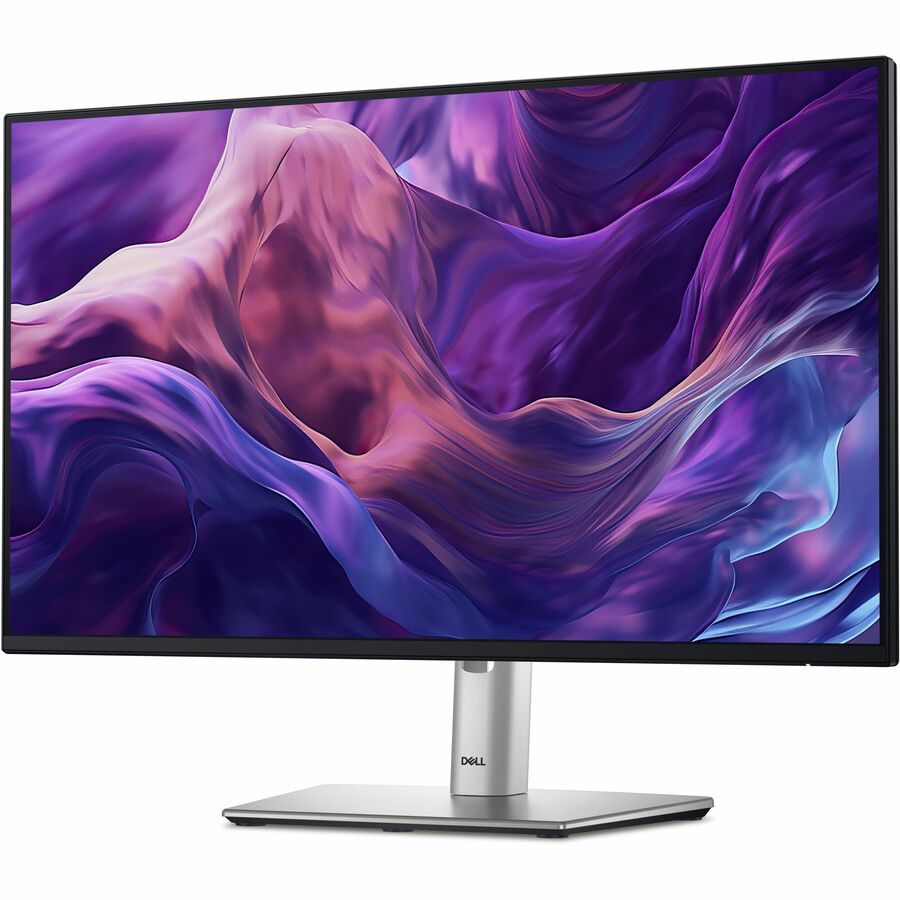

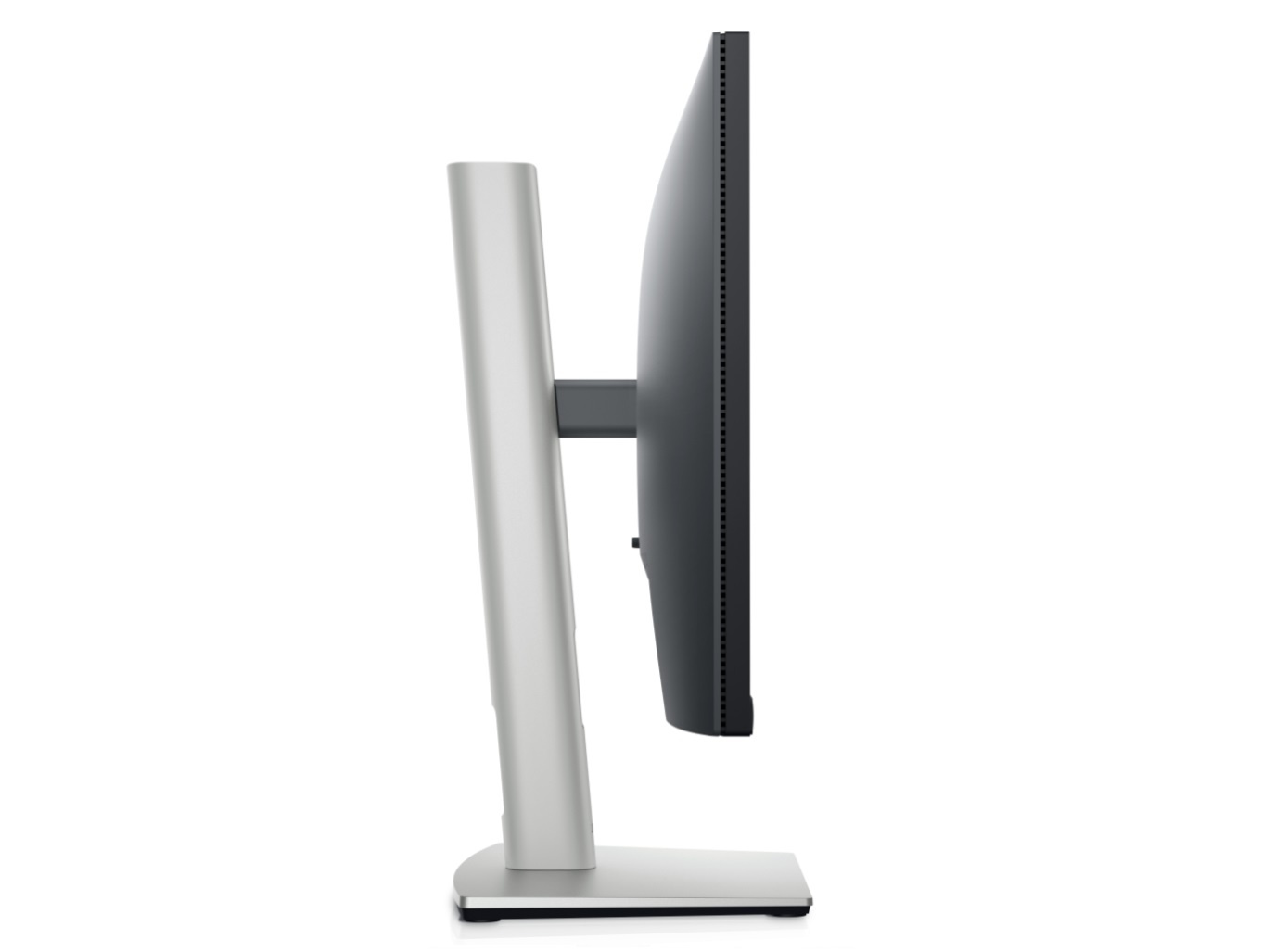

Customer Facing Display Monitor - Without Stand
Without stand - Height: 29.34 cm | Width: 48.73 cm | Depth: 4.13 cm
P2219H Monitor

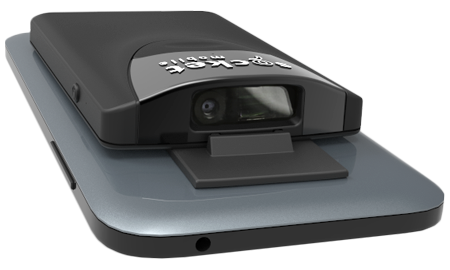

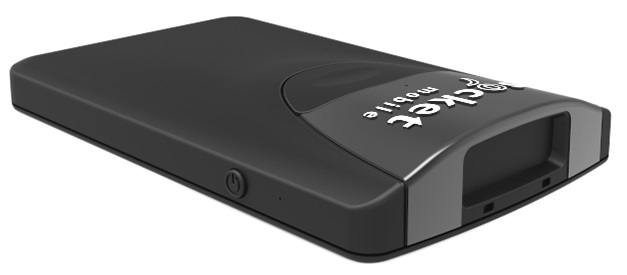

Stocktake Barcode Scanner
Length: 8.55 cm | Width: 4.50 cm | Depth: 1.24 cm
